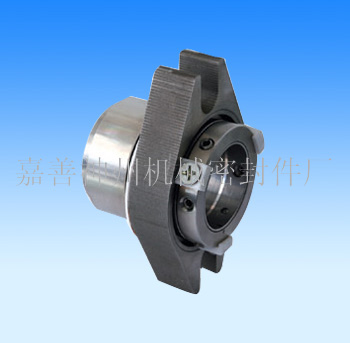

Products Name:SZ318 container type mechanical seal

Products Details:Balanced ring, easy to install, easy to use, excellent alternative to pump packing and sealing.

Operating parameters:
The metal parts: 316 stainless steel; O type ring: fluorocarbon; static contact surface: composite carbon, graphite, silicon carbide; pressure: not more than 25 kg / cm2; spring: high temperature nickel base alloy; rolling contact surface: silicon carbide, tungsten carbide; temperature: less than 205 degrees Celsius; speed: no more than 20 m / s.

Why use the packing that will damage the pump shaft and shaft sleeve, or the ordinary two parts seal, save energy, shaft element wear, installation simple, economic savings, SZ318 is your ideal choice

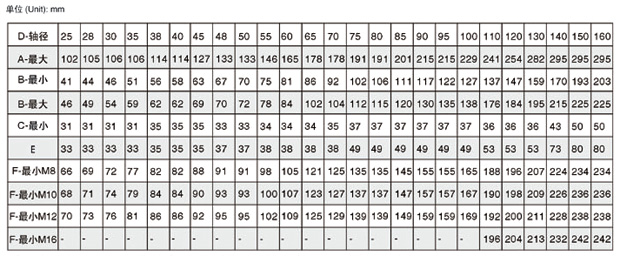

A- cover diameter ? B- filling cavity diameter ? C- axis or axle sleeve diameter ? E- packing cavity outside sealing length ? F- corresponding to different bolt specifications minimum bolt center distance
